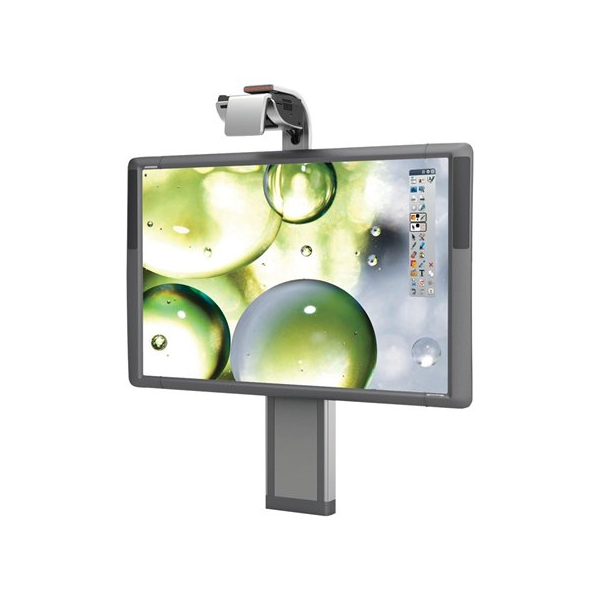

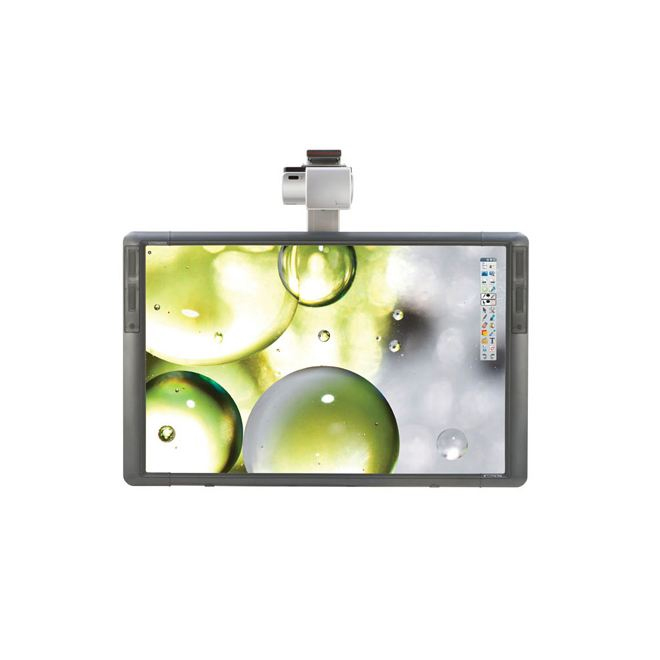

Promethean ActivBoard 587 Pro Fixed with Extreme Short Throw Projector
Feel the energy and engagement level rise instantly in your classroom when using the ActivBoard 500 Pro. Elevating the standard for interactive whiteboards, The ActivBoard 500 Pro promotes a natural way of interacting with technology modelled on real-world behaviour and gestures.
Projector EST-P1 (DLP) Features:
-
WXGA (1280 x 800) up to 1080i
-
16.77 million colours
-
Brightness (ANSI lumens) 2200 ANSI (normal) 2500 ANSI (high)
-
Contrast Ratio 2000:1
-
Aspect Ratio 16:10 (native), 4:3, 16:9
-
DLP Technology
-
Manual Focus
-
Focal Length F=2.4
-
Projection Distance 0.39m - 0.56m
-
Projection Screen Size 1.98m - 2.79m
-
Keystone Correction - Vertical: max ±15°
-
Lamp 220W (6000hrs (normal), 4000hrs (high))
-
Connectivity - D-sub 15 (RGB) x 2, D-sub 15 (Monitor out) x 1, HDMI V.1.3 only for Video x 1, S-Video (Mini DIN 4-pin) x 1, Composite Video (RCA) x 1, USB control x1, Networking LAN (RJ45) x 1, RS-232C (D-sub 9) x 1
Fixed System:
Aluminum arm, extends 550mm (21.7in) from the wall
|
Key Features |
|
Product Description |
Promethean 587 Pro ActivBoard |
|
Device type |
500 PRO Range 87" Electronic Interactive Whiteboard |
|
Resolution |
14600 x 9200 |
|
Screen Surface |
Low Glare Melamine |
|
Board Size |
87in |
|
Overall Dimensions |
2105mm x 1329mm (82.9in x 52.3in) |
|
Active Area Dimensions |
1865mm x 1175mm (73.4in x 46.3in) |
|
Digitizing Technology |
Passive Electromagnetic and Capacitive sensing interface |
|
Dual User Functionality |
Pen: 1 Instructor ActivPen and 1 Participant ActivPen can be used together in Dual-User Mode when using ActivInspire 1.5 Professional Edition and above
Pen and Touch: 1 Participant ActivPen and simultaneous additional two-touch gesture supported when using ActivInspire 1.5 Professional Edition and above |
|
Touch Response Rate |
10 ms |
|
Maximum Simultaneous Touches |
2 with ActivInspire (Minimum requirement of 1.5 ActivInspire Professional Edition)
4 with Windows 7 |
|
Connections |
USB 2.0, 1 x 3m USB 2.0 data cable supplied |
|
Operating System |
Windows XP SP3 and above (XP/Vista/7); Mac OSX 10.4.11 – 10.6.4 (Tiger/Leopard/Snow Leopard); Linux Ubuntu 9.10 or 10.04; Debian Lenny; Linex Colegios 2010; Linkat 3; ALT_Linux (Russia) |
|
System Requirements |
PC - 2.0 GHz Intel Core 2 Duo or faster for HD-quality videos, 1 GB of RAM is required to play HD-quality videos, 1024 x 768 resolution, 1.5 GB of Free Disk Space
MAC - 2.0 GHz Intel Core 2 Duo, 512 MB of RAM, 1024 x 768 resolution, 3.0 GB of free disk space
Linux - 2.0 GHz Processor or faster for HD-quality videos, 1 GB of RAM is required to play HD-quality videos, 1024 x 768 resolution, 1.5 GB of free disk space |
|
Connection to Peripherals |
2 x USB ports on left hand side |
|
Integrated USB Sound |
Two integrated slim-line speakers and amplifier (with controls, inputs and outputs) |
|
Weight |
40kg (88lb) |
|
Manufacturer part number |
ABFS587PEST |
|
Manufacturer Warranty |
5 Years Onsite Warranty Once Registered |
Whats included :
-
Promethean 587 Pro ActivBoard (Fixed)
-
EST-P1 (DLP) projector included
-
2x Teacher & 2x Student ActivPen 50 included
The installation of this product should be completed by a Promethean Certified Installer additional costs apply (subject to site survey and location)
If unsure of your exact requirements, please call the sales team free on 0800 10 77 6 55 who will be able to advise you. Alternatively email us at enquiries@exteradirect.co.uk
|
